Project Description

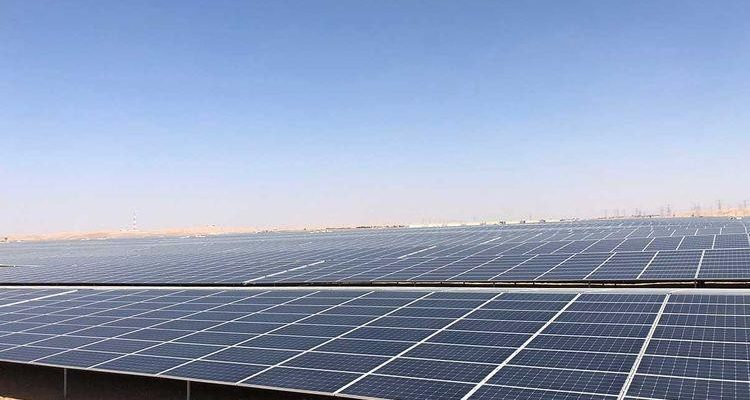

Client: 32MW Solar plant Noor Abu Dhabi , Sweihan
Location: Abu Dhabi , Sweihan, United Arab Emirates
Civil works:
- Site Levelling Works
- Survey Trench marking
- DC Cable
- Mobilizing Back filling Soil
- Back Filling DC Trench
- Civil Foundations Works for Inverters, transformers, RMU
- Excavation for Invertor and transformer RMU Foundations
- Constructing PCC and required Test &
- Installing Pre-cast Foundation For Inverter, transformer, RMU with
- Installing pre-cast Slabs for Inverter & RMU with 100T crane
- Installing Inverter, RMU, Transformer on Precast slab with 200T
The Langham Hotel located in Mountain View is one of the CA’s largest hotel with over 450,000 square feet of new construction. The complete interior renovation included removing walls, new restrooms, paint, wall coverings, tile and carpeting.

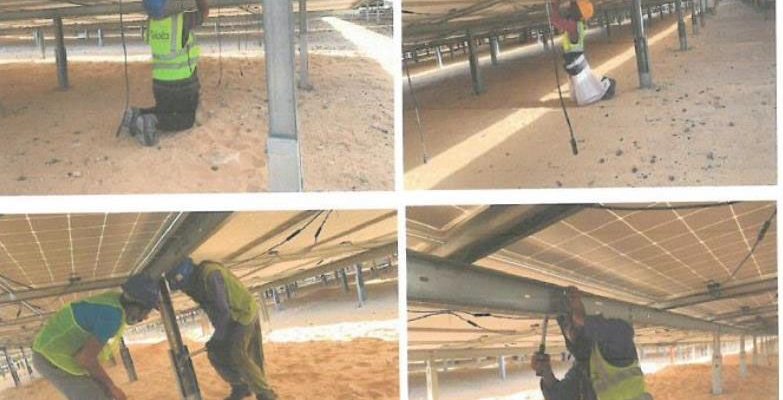

mechanical works:
- Mobilization of Structure and Module
- Installing C – channel, Omega, End clamp, mid clamp
- Installation of
- Structure
- Module alignment.
- Torque for
- Torque for
- Installing Robots Docking Station, Return
- Installing Robots Intermediate Bridges.
- Assembling of Robots & mobilizing to Docking
- Module Mapping
Electrical works:
- DC cable 300MM cable laying
- RS 485 Cable laying
- HDEP pipe laying.
- SCB
- DC Cable 300MM Termination (SCB Side & Inverter side) .
- String Cable 6SQMM laying &
- MC4 Connections, Y – Connector
- Installing CAT – 6
- CCTV
- Wind Sensor
- Earthing (Structure to Structure, Table – Table with PVC cable)
- Invertor Station & transformer Earthing Modules, Earth pits ,
- SCB
- RS 485 Termination
- Bare Copper laying
- PVC Copper laying
- Exothermic joints, T – Connection
- SCB earthing
Testing and commissioning works:
- IV curve test
- SCB cable polarity test
- DC homerun 300mm cable continuity test
- DC string cable 6mm cable Continuity test
- DC String insulation resistance test
- Earth resistance test
- House keeping
